Markforged X5 3D Printer

The X5 produces high-quality continuous fiber-reinforced parts.

X5 Data Sheet
Get a Quote
Precise PLA Material in Red

Continuous Fiberglass Reinforced Parts

The X5 prints Fiberglass reinforced parts capable of replacing some machined aluminum parts. Experience what parts 10x stronger than ABS can do for your manufacturing and prototyping process.
A 3D printed bracket showing carbon fiber reinforcement

A Wide Range of Print Modes

Print parts with various print modes, including high-resolution printing. The modes ensure your part is perfect down to even the smallest details—experience print quality unlike other types of 3D printers.
An impeller printed in orange Precise PLA material from Markforged.

Industrial Accuracy and Reliability

Well-designed hardware, best-in-class sensors, and one-of-a-kind software create industry-leading accurate and reliable parts for industrial use. Markforged industrial 3D printers deliver micron-level laser scanning for closed-loop calibration, reliably furnishing parts with near-perfect surface finish and a highly repeatable print cycle.

3D Printing Software Meets Production Management

Design your part, upload it into Markforged’s browser-based software, select from a wide range of Composite Base filaments and Continuous Fibers, and hit print. Additive Manufacturing has never been so easy.
Get a Quote
Try Eiger

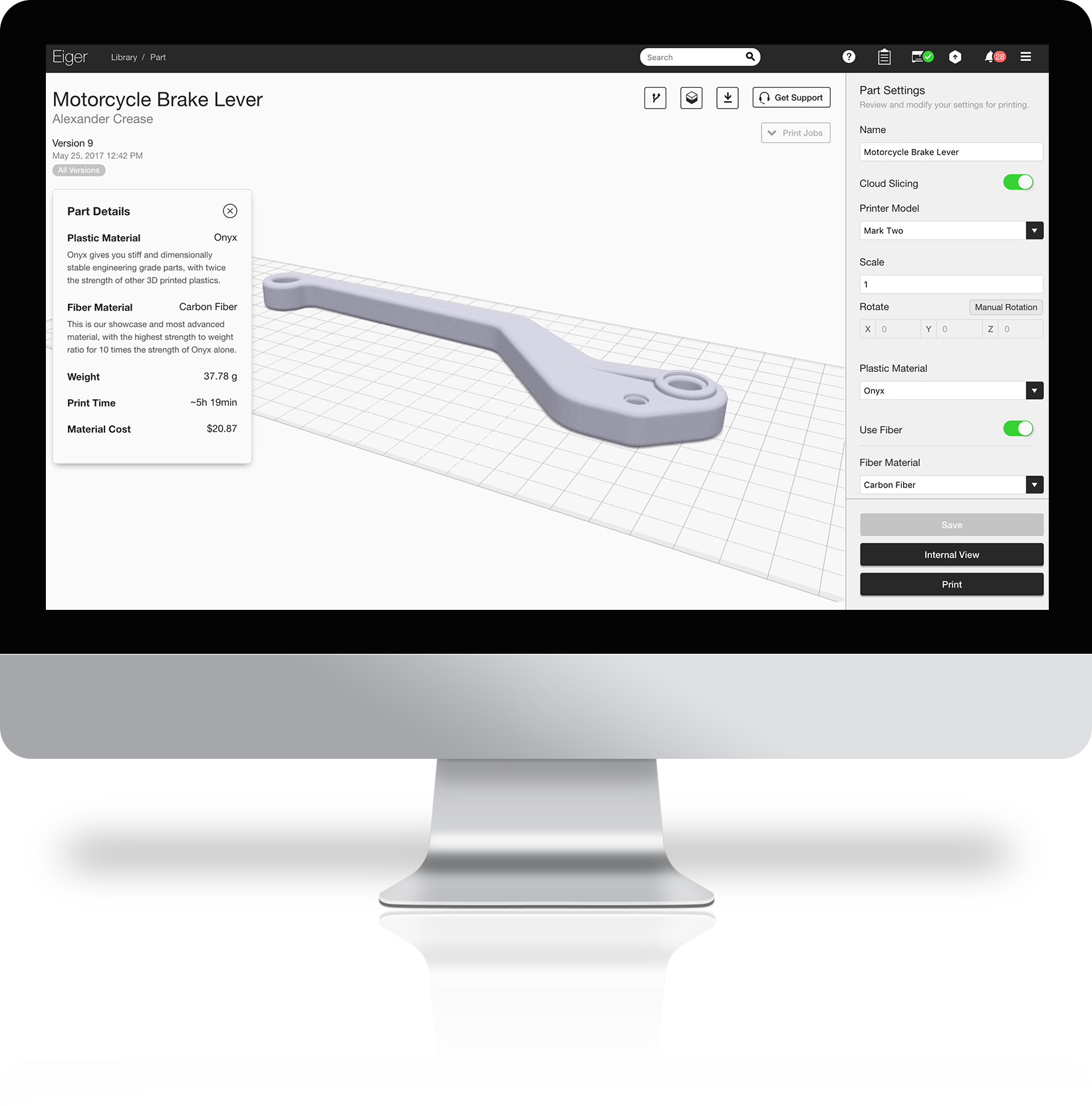

Eiger software interface from Markforged.
3D printed gear printed in black Precise PLA material from Markforged

A Variety of Material Options

The X5 provides manufacturers with six different material options, including Fiberglass, Nylon, Onyx ESD, Onyx FR, Onyx, and Precise PLA.
X5 Materials

Leverage the strength of Continuous Fiberglass reinforcement to print parts 10x more substantial than plastic

3D Printer

Markforged X5 3D Printer

Printing Process

Continuous Fiber Reinforcement (CFR)

Z Layer Resolution

50 μm - 200 μm

Printing Media

Composite Base Filaments, Continuous Fibers

Internal Part Geometry

Closed Cell Infill with Continuous Fiber Reinforcement

Print Bed

Precision Ground Composite

System Details

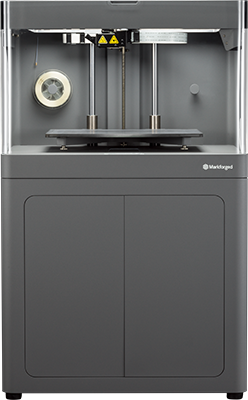

Markforged X5

The Markforged X5 CFR commercial 3D printer merges precision-built 3D printing hardware, advanced sensors, and industry-leading software to produce accurate parts. It features a reinforced, precision-machined gantry and a precision ground print bed that can be removed and replaced with ten μm repeatability.

Each piece of hardware in the filament extrusion system — from the nozzles to the extruder hobs — is optimized to resist wear from micro carbon fiber-filled nylon filaments and maintain print quality over thousands of hours.

Out-of-material sensors ensure that you’re continuously printing. At the same time, a scanning laser on the printhead enables the printer to dynamically adjust the first layers of a print to achieve perfect bed adhesion.

The X5 has a 3rd-generation fiber reinforcement system that lets you lay down continuous fiber into parts layer by layer. Markforged composite printers are capable of printing Continuous Fiberglass reinforced parts.

The X5 has a build volume of 330 mm wide, 270 mm in depth, and 200 mm in height.

Looking to Outsource a 3D Printing Job?

Are you looking to have a 3D part printed for you? TPM has you covered! Our expert team of engineers, year over year, produce parts for a multitude of clients. As the leader in outsourced 3D printing, you’re in the right hands!
Learn More

Need a Different Markforged Printer?

Our Markforged 3D printing solutions give you a wide range of options to fit your needs.
See More
